CONTROL TENSIOMETER FOR GYMNASTICS CABLE SYSTEMS - FIG - PARIS 2024 Requirements
5
year
Ref : P24/2040
CONTROL TENSIOMETER FOR GYMNASTICS CABLE SYSTEMS - FIG - PARIS 2024 Requirements

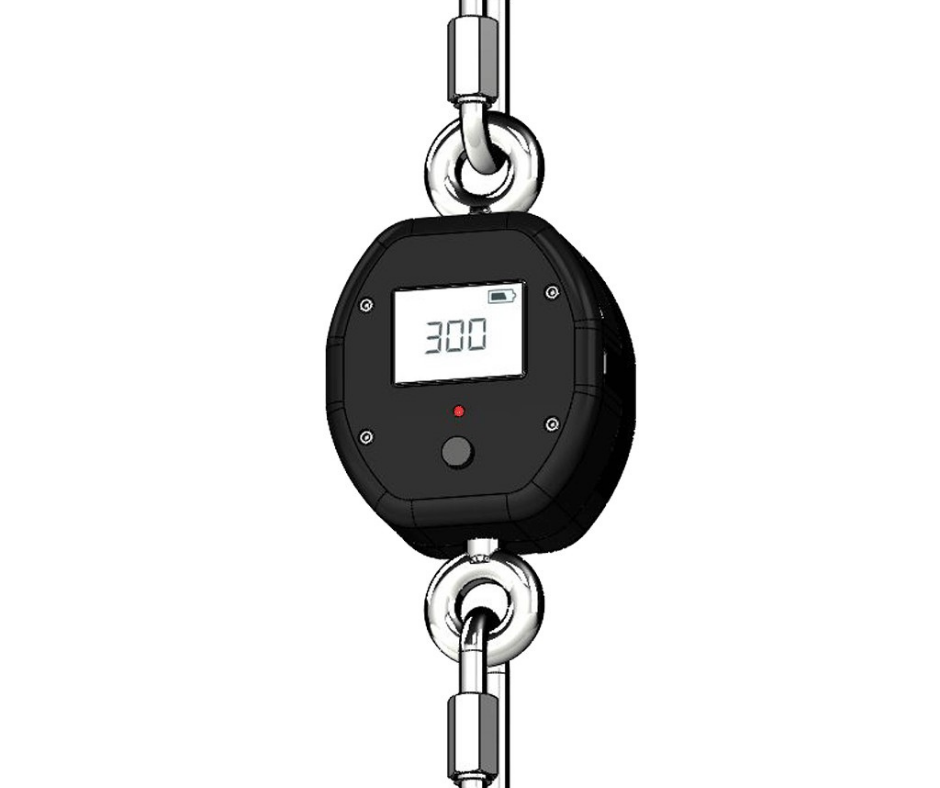

Specially adapted to measure the tension of gymnastic apparatus cables. This FIG approved tensiometer is a measuring device for asymmetric bars, high bars and ring frames. This easy to use tensiometer with measurement button and digital display allows gymnasts to adapt the tension of the cables of the apparatus according to their needs in competition as well as in training.
A real control tool, it will also allow you to check the tension of the cables on a regular basis so that the gymnasts can train in the best conditions. For the safety of the gymnasts, the tension of the cables must be between 1000 to 5000 (N) and when the tension becomes too low or too high a red light signal will appear.
Autonomous the external battery charger allows you to recharge the tensiometer without removing it. It has a charge indicator to view the battery level and an “automatic shutdown” function turns the screen off after a few seconds to save energy. The charging time of the tensiometer with the power cable + charger (not supplied) is 4 to 6 hours. Once charged, the autonomy of the tensiometer varies from several weeks to a few months (depending on use).

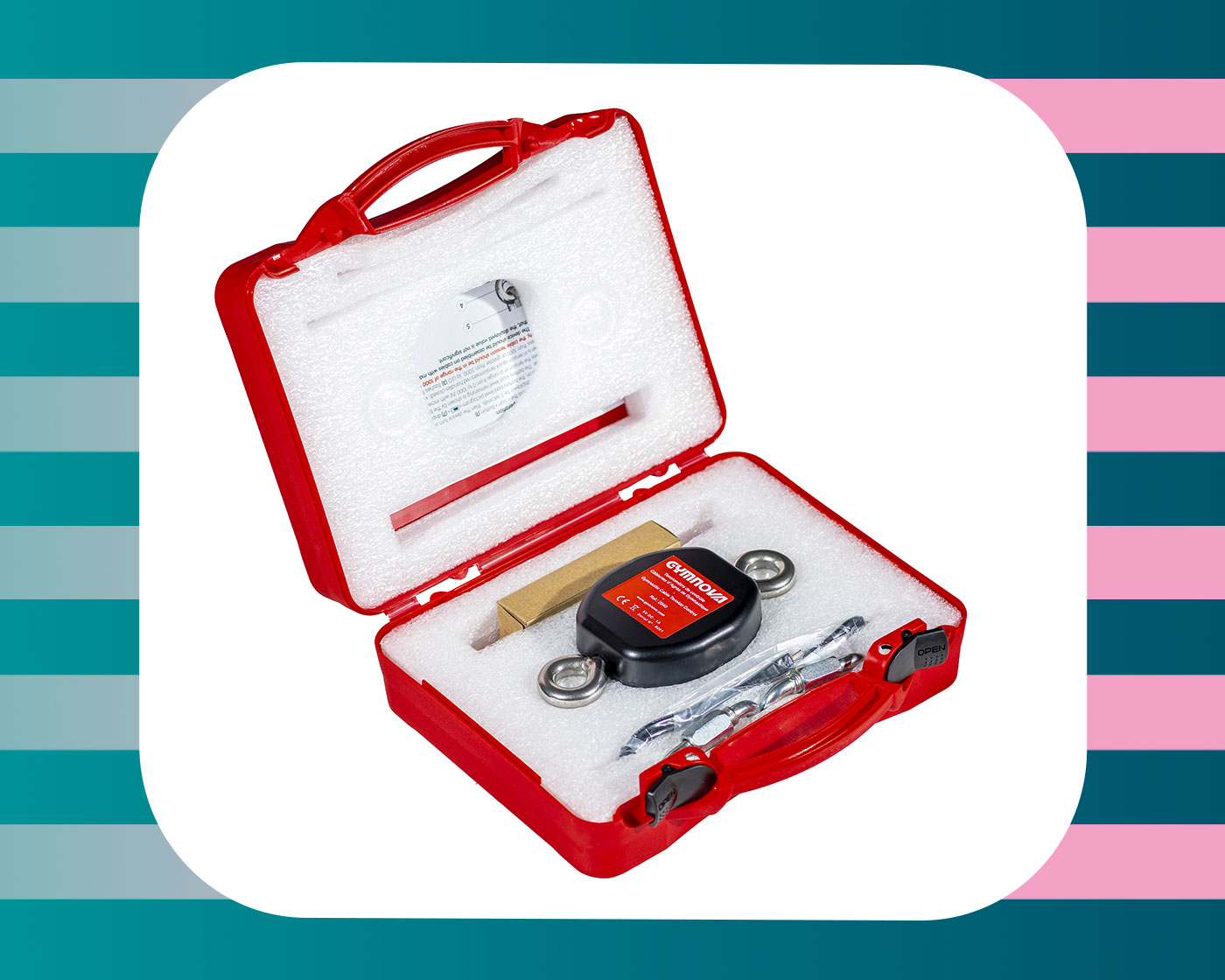

DELIVERED WITH A TRANSPORT CASE CONTAINING: - 1 Tensiometer with quick links; - 1 USB external battery charger; - 1 Mini USB power cable (1m); - 1 set of instructions for assembly and use.
Specially adapted to measure the tension of gymnastic apparatus cables. This FIG approved tensiometer is a measuring device for asymmetric bars, high bars and ring frames. This easy to use tensiometer with measurement button and digital display allows gymnasts to adapt the tension of the cables of the apparatus according to their needs in competition as well as in training.
A real control tool, it will also allow you to check the tension of the cables on a regular basis so that the gymnasts can train in the best conditions. For the safety of the gymnasts, the tension of the cables must be between 1000 to 5000 (N) and when the tension becomes too low or too high a red light signal will appear.
Autonomous the external battery charger allows you to recharge the tensiometer without removing it. It has a charge indicator to view the battery level and an “automatic shutdown” function turns the screen off after a few seconds to save energy. The charging time of the tensiometer with the power cable + charger (not supplied) is 4 to 6 hours. Once charged, the autonomy of the tensiometer varies from several weeks to a few months (depending on use).
DELIVERED WITH A TRANSPORT CASE CONTAINING: - 1 Tensiometer with quick links; - 1 USB external battery charger; - 1 Mini USB power cable (1m); - 1 set of instructions for assembly and use.
Technical features

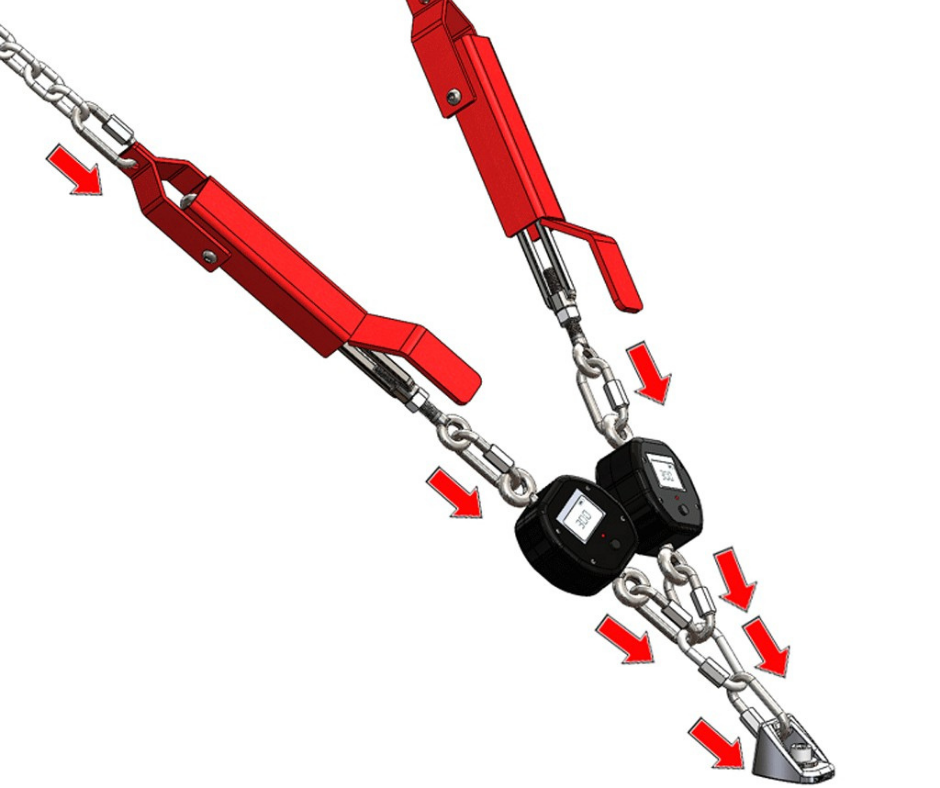

THE TENSIOMETER IS PROVIDED TO BE ASSEMBLED ON STANDARD CABLE SET FOR GYMNOVA APPARATUS FOLLOWING: References: 3230, 3240, 3270D, 3020F, 3030, 3120H, 3700D, and 3770F.
To equip your asymmetric and high bars with short cables, contact us.
FIG certificate
This product is approved by the International Gymnastics Federation
